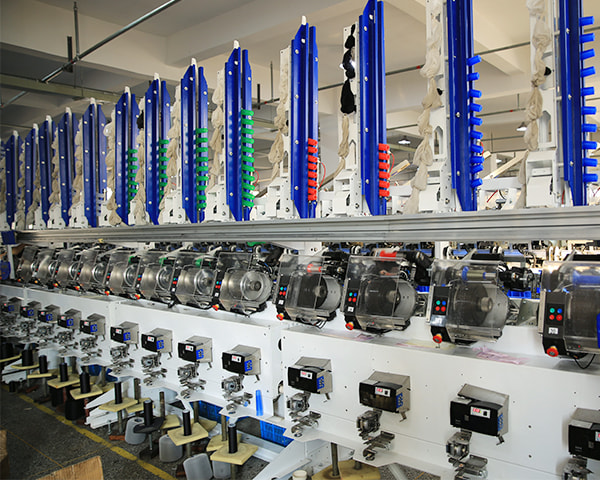

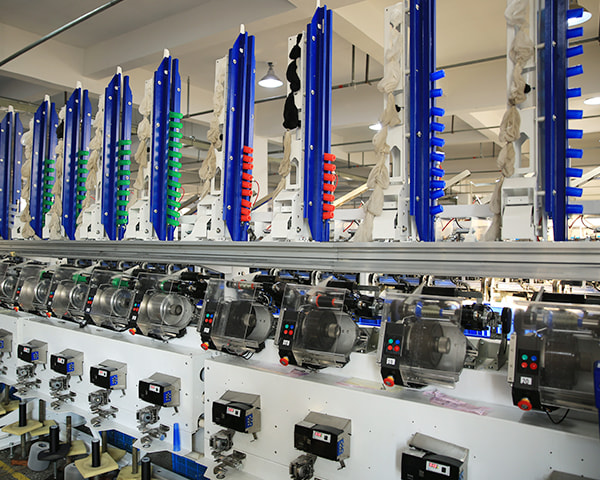

KC522B Automatic high-speed winder

product advantages：

Filament Yarn	Polyester	Polypropylene (PP)	Polybutylene Terephthalate	Glass fibre	Aramid	Viscose	Technical Yarns	Polyamid
Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.	Synthetic fiber made from a thermoplastic polymer that contain the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 – 106°C.	Polypropylene is a thermoplastic polymer used in a wide variety of applications including packaging and labeling, textiles (e.g., ropes, thermal underwear and carpets), stationery, plastic parts and reusable containers of various types, laboratory equipment, loudspeakers, automotive components, and polymer banknotes. An addition polymer made from the monomer propylene, it is rugged and unusually resistant to many chemical solvents, bases and acids.	PBT is similar to other thermoplasic polyesters. Compared to PET, PBT has a slightly lower strenth and rigidity, but a better impact resistance. The yarn has a natural stretch and can be incorporated into sports wear (most common found in swimwear).	Also called spun glass, is a material consisting of extremely fine filaments of glass that are combined in yarn and woven into fabrics. Used in making various products, such as yarns, fabrics, insulators, and structural objects or parts.	Aramid is the short term for aromatic polyamide. They are fibres, in which the chain molecules are highly oriented along the fibre axis, so the strength of the chemical bond can be exploited. The fibre is heat-resistant and of great strength. Aramid is used in materials for bulletproof vests and radial tires.	Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear.	The yarns are used for technical textile products, manufactured for non-aesthetic purposes, where function (rigidity, strength, dimension stability, design flexibility and economic viability) is the primary criterion.	Also known as Nylon. PA consists of chemical fibres and are obtained from synthetic polymers. Polyamid is very resistant and tear proof as well as elastic, stretchable and takes just a little moisture up. In addition it is extensively crease-resistant and drip-dry.

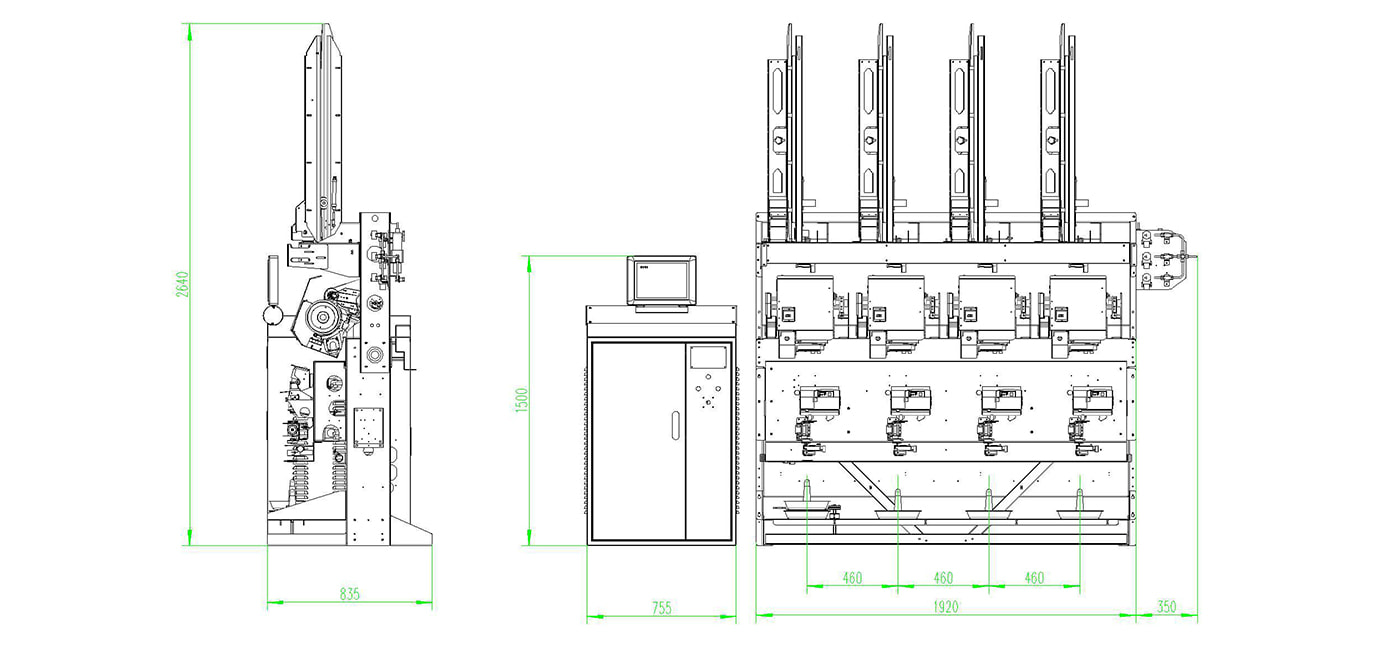

PRODUCT DIMENSIONS

TECHNOLOGY PARAMETER

Machine structure	Single side,single layer
Spindle gauge	460mm
Min./Max.No.of spindles	4/20(Max.number of spindles per oil feeding system:20)
Type of winding	Precision cross winding
Take-up tubes	A tube:cones(cones with conicity from 3°30 to 5°57′;cylindrical or cone king spool up to 2°;tip diameter≥18mm )
Linear speed	Up to 1100m/min(depend to the process parameters)
Traverse	76mm～152mm(±3.5mm, depend on the tank size, there are certain limitations)
Yarn count	Up to 3300D
Take-up package diameter	Up to 105mm
Supply package diameter	Up to 320mm
Rated power	300W/spindle
Compression air	6Pa

PRODUCT FEATURES

Used for A-tube, Y-tube( King-tube), cylinder tube production, be suitable for the production which need exchange a variety specifications of application.

Mainly suitable for winding of spun sewing thread、embroidery thread、corn spun、textured filament、industrial yarn、special yarn and etc.

Features

Intelligent and constant temperature oil feeding device, can stop automatically when out-of oil or oil shortage , and can follow the leaner speed to change the amount of oil supply automatically, which achieve accurate refueling and perfect ensure the oil amount.

Feature model 1：Forming production of 2 inch cylinder tubes ,the diameter of tube (inner hole)

Feature model 2: Forming production of 2 inch Y-tubes;

Feature model 3: Electronic guide yarn forming production, can be adjusted at forming length, edge Angle in the required range;
